Eagle Bucket Wheel Trenchers

Guntert & Zimmerman manufactires the highest quality wheel trenchers to increase productivity, lower operating costs, and ensure ease of operation. Eagle Trenchers are an excellent choice for a wide variety of high production trenching applications, such as foundations, utilities, irrigation, and fiber optic installations. Eagle Trenchers are built rugged enough for the toughest jobs and when the job is done...a clean superior end product is left behind.

Along with Wheel Trenchers for trenching applications, G&Z builds Trapezoidal Trenchers for excavating and trimming small to medium size canals at high production rates in a single pass. Trapezoidal Trenchers eliminate the need to use a conventional excavator for the initial rough excavation in preparation for trimming because of its combination excavator and trimmer design.

Years of field and manufacturing experience and incorporating the latest available technology make Eagle Trenchers the obvious choice for boosting jobsite trenching productivity and profitability.

Standard Bucket Wheel Trenchers

Model

Max. Depth

Max. Width

Min. Width

Engine Power

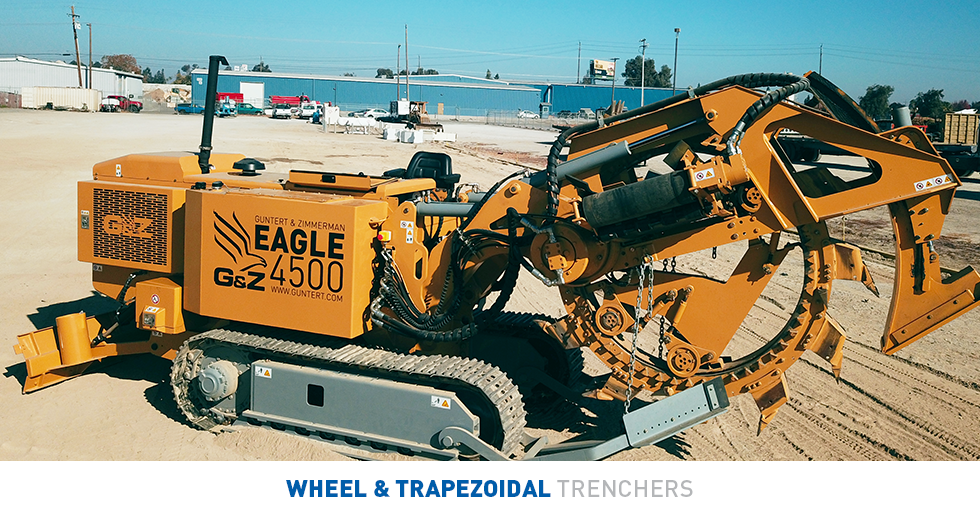

4500 4ft. (1.22 m) 24 in. (610 mm) 12 in. (305 mm) 115 bhp (86 bkW)
5500 5 ft. (1.52 m) 24 in. (610 mm) 12 in. (305 mm) 115 bhp (86 bkW)
6500 6 ft. (1.83 m) 30 in. (762 mm) 18 in. (457 mm) 175 hp (130 kW)
7500 7 ft. (2.13 m) 40 in. (1016 mm) 22 in. (559 mm) 275 hp (205 kW)
8500 8 ft. (2.43 m) 48 in. (1220 mm) 24 in. (610 mm) 385 hp (287 kW)
9700 9 ft. (2.74 m) 32 in. (812 mm) 26 in. (660 mm) 275 bhp (205 bkW)



Trapzoidal Bucket Wheel Trenchers

Model

Max. Depth

Max. Width

Engine Power

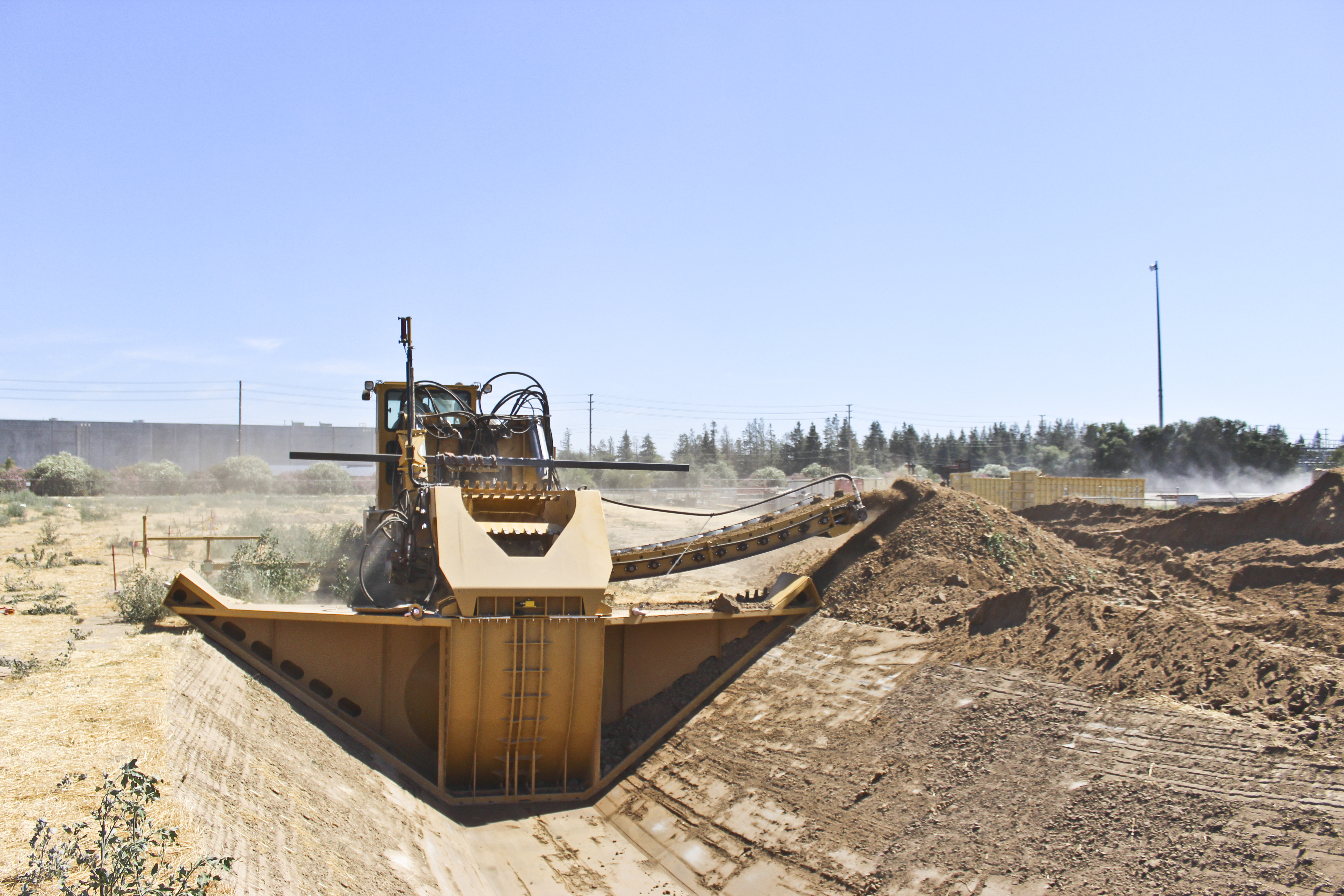

6300 4 ft. (1.22 m) 4 ft. (1.22 m) 275 hp (205 kW)
7300 8 ft. (2.44 m) 8.6 ft. (2.50 m) 385 hp (287 kW)
