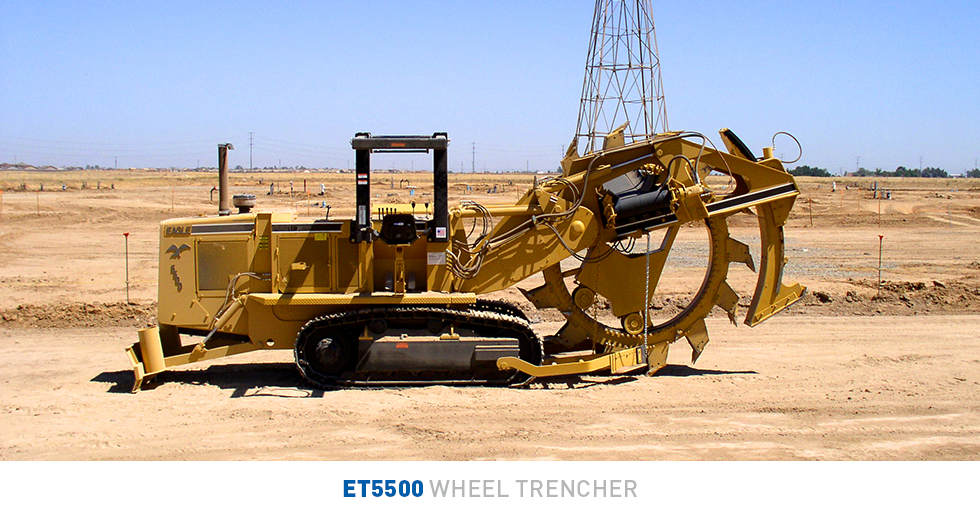

Eagle Bucket Wheel Trenchers

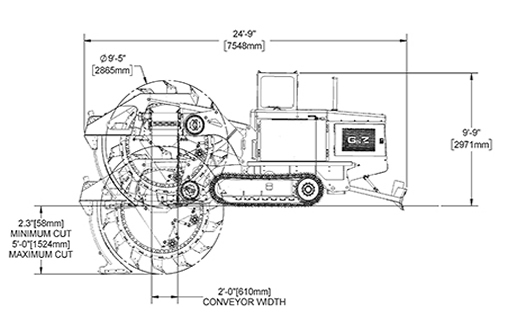

ET5500 Side View

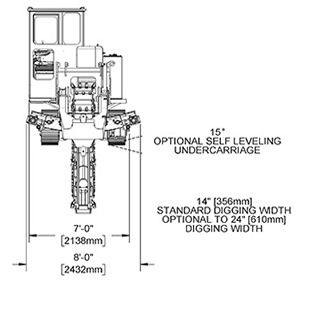

ET5500 Rear View





Standard Features
  • Engine: US EPA Tier 4 Final, EU Stage IV emission standards, Direct Injection, Turbocharged-Aftercooled (TA), In-Line 4, 4-Stroke-Cycle Diesel, approximately 115 bhp (86 bkW)
  • Digging Drive: Robust piston low speed high torque motor mounted directly to the No. 1 head shaft
  • Undercarriage: G&Z D3 size crawlers, rock guards, high reduction planetary gear box
  • Conveyor: Reversible Hydraulic Drive for either right or left discharge, 24 in. (610mm) wide x approximately 8 ft. (2431mm) long, rated @ 1000 fpm (305 M/min)
  • Fixed Crumb Shoe with fully enclosed light weight stay rod
  • 5/8 in. Hardox© rim with heat treated gear type matched segments and split sprocket
  • Hydraulic conveyor shift for adjustable discharge
  • EGON high response adjustable control system with filter monitoring system
  • Remote Operator Console, Belly Pack Type, with intuitively organized Switches / Joy Sticks labeled with ISO symbols, Wireless Capable, Docking Station
  • User Interface through LCD, High Resolution / Anti-glare Color Screen, Ambient Light Sensor controlled Backlighting, and CAN, RS-232 or USB interfaces for diagnostics and downloading software updates
  • Corner to corner adjustable position E-stop system
  • Anti-Vandalism Locks & Guards
  • Adjustable Operator Seat
Optional Features
  • EGON Telematics remote diagnostics and monitoring system
  • Electronic Foot Pedal Control for Machine Steering
  • Utility Buckets / Irrigation Buckets
  • Sensed Hydraulic Filters
  • Cable Laying Attachment
  • Carbide Teeth
  • Stringline / GPS / 3D guidance software for steering and grade
  • Dozer Blade
  • Berm Scrapers
  • 15"-24" (381mm-610mm) Side Cutter Sets
  • Cab- Heated and Air Conditioned
  • Umbrella
