- Engine: 6 cylinder, air-cooled, Diesel, US EPA Tier 3 / EU Stage IIIA compliant, turbocharged, 385 HP (287kW) at 2100rpm, Continuous Rating
- Depth: 1’-6” (0.46m) minimum / 8’-0” (2.50m) maximum depending on the maximum depth
- Slopes: 1:1, 1.25:1, and 1.5:1 as ordered. Some limitations may apply.
- Bottom Width: 12” (0.3m) Bucket (nominal) to 8’-6” (2.50m) maximum cut depending on slope and depth. Consult with G&Z factory on your exact canal cross sections
- Teeth: Hensley X156 or equivalent with roll pin
- Digging Wheel: Hydraulic Motor Drive mounted directly to the wheel head shaft with bolt-on, cast steel split sprockets driving off the wheel rim segments center pull, articulated pivot mast connected to the tractor for curves
Wheel Rim: False style rims with weld-on cast steel segment
- Rotary Drive: Rotary output shaft driven off bolt-on, “bull gear” running off bucket wheel rim segments. Bull gear drives outer slope rotaries
- Manual/Automatic Steering and Elevation Control: Includes sensors, adjustable supports, and cross slope control in reference to a single stringline
- Hydraulically Adjustable Counterweight
|
- Conveyor: Reversible hydraulic drive for either right or left conveyor discharge, 42” (1067mm) wide and up to 20’-11” x (6.375m) long. The conveyor length is custom made to fit your application and is rated @ 0 - 1000fpm (0 - 305m/min). Includes hydraulic conveyor shift mechanism

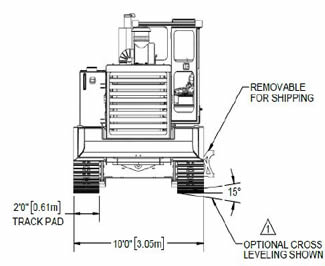

- Undercarriage: G&Z D-5 size Crawlers, track chain with split master link. High reduction planetary gearboxes. Undercarriage mounted to a separate subframe, and center pin connected to the tractor body. Machine equipped with Cross Level Control System which includes hydraulic cylinders for cross level control for 15 degree maximum angle
- Speed Range:
Working Speed: 0 - 29 fpm (0 - 8.8m/min)
Travel Speed: 0 - 186 fpm (0 - 56m/min)
- Weight: Approx. 100,000lbs-130,000lbs (45,359-58,967kg) depending on configuration
- Lighting: DC Night Lighting System which includes 4ea LED Lamps
- Operator Cabin: Includes heating / air conditioning
- Back up alarm
|
