Reaches 85% uniformity after only 15 seconds, 95% uniformity after 30 second.
Approximately 30% of one mixing blade rotation is exposed to ear on the mixer trough bottom.
Crossover of two mixing circles creates a high degree of turbulence.

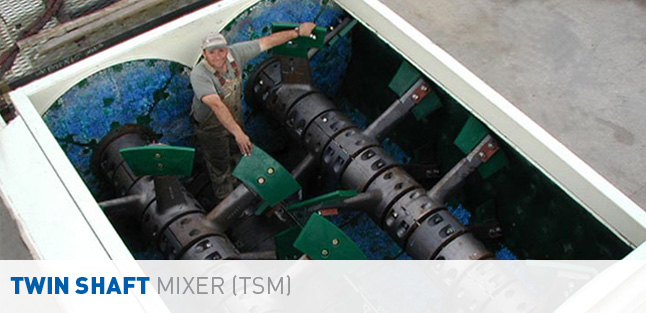

The mixing arms are arranged on hexagonal mixing shafts forming an interrupted spiral to produce an intensive mixing motion.
Details
Mixers are equipped with high-quality hexagonal shafts for optimum torsional and flexural rigidity.
The mixer drive has a single electric motor driven reduction/timing gearbox to insure uniform distribution of power to the twin mixing shafts.
Mixers are equipped with oversized round body discharge gate(s). This increases production capacity because more rapid discharge will yield more cycles per hour and allows larger top size aggregates to be mixed.
Imperial Capacities
Type
TSM8
TSM10
TSM13
Nom. size of Mixer
8 cyd
10 cyd
13 cyd
Dry charge aggregates and binder
12.0 cyd
15.0 cyd
19.5 cyd
Fresh concrete per batch
10.0 cyd
12.5 cyd
16.25 cyd
Vibrated & compacted concrete per batch
8.0 cyd
10.0 cyd
13.0 cyd
Power normal aggregate 60° mixing arms
2 x 125 HP
1 x 300 HP
1 x 400 HP
Max. possible aggregate sizes with mixing arms placed at 60°
0 - 6 inches
0 - 7 inches
0 - 7 inches
Metric Capacities
Type
TSM8
TSM10
TSM13
Nom. size of Mixer
6.0 m³
7.5 m³
10.0 m³
Dry charge aggregates and binder
9.0 m³
11.25 m³
15.0 m³
Fresh concrete per batch
7.5 m³
9.4 m³
12.5 m³
Vibrated & compacted concrete per batch
6.0 m³
7.5 m³
10.0 m³
Power normal aggregate 60° mixing arms
2 x 75 kW
1 x 225 kW
1 x 300 kW
Max. possible aggregate sizes with mixing arms placed at 60°
