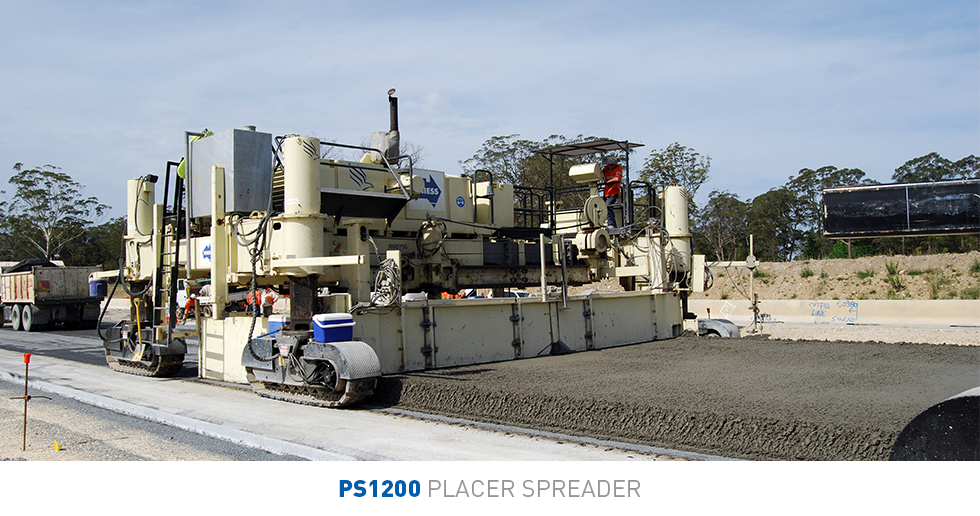

G&Z's PS1200 is the first fresh look at placer spreader design in more than thirty years. The innovative PS1200 design features a powerful and highly productive roll-in / roll-out concrete receiving belt supported by a telescopic tractor frame that allows the PS1200 to be transported in a single load without disassembly. The conveyor is powerful enough and receiving skip low enough to receive material from just about any truck / trailer used in the industry to haul concrete. The PS1200 offers high production concrete placing and spreading solutions at widths out to 42 ft. (12.5m) while including unparalleled maneuverability, ease of width change and low maintenance one comes to expect from G&Z equipment.
The modular and patented Strike-off / Spreader Plow System offers many advantages over the industry status quo. For transport, the module retracts against the back of the tractor frame and does not require removal for transport. The Strike-off is robust enough to push material back to the paver while the spreader plow can move more concrete faster than an auger without the inherent restrictions of an auger. Furthermore, the Strike-off / Spreader Plow Module can be rapidly removed from the tractor and relocated to the opposite side of the PS1200 without the aid of a crane to relocate the feed side of the machine.
Operator visibility of the dumping and spreading operation of the PS1200 couldn't be better. A remote operator platform is available on the PS1200 bolster overlooking the conveyor skip / dumping operation while providing an excellent view of the spreading operation. The PS1200 Control Console is relocatable anywhere along the hand railing of the platform to match the operator's preference.
Innovation, productivity, versatility, power, ease of maintenance and use are all synonymous for the PS1200 design offering you years of profitable use.
![Concrete Placer Spreaders](../../images/products/hwyair/equipspechead.png)
Min.spreading width |
18' (5.5 m) |
Engine |
6-Cylinder CAT C7 ACERT US Federal Tier 3 / European Stage IIIA @ 2100 RPM @ 275 hp (202 kW) |
Max. spreading width |
25' (7.6 m) |
Diesel fuel tank |
150 U.S. gallon (567 l) |
Max. tractor frame extension |
41' (12.5 m) |
Hydraulic tank |
190 U.S. gallon (718 l) |
Telescopic Tractor Frame Range |
18' - 25' (5.5 - 7.6 m) |
Crawler Tracks |
4 (3 Track Configurations Possible) |
Belt |
Roll-in / Roll-out with 64" (1.6m) wide belt |
ECO - Throttle |
automatic adjustment of engine speed to reduce fuel consumption by up to 35% |
|
