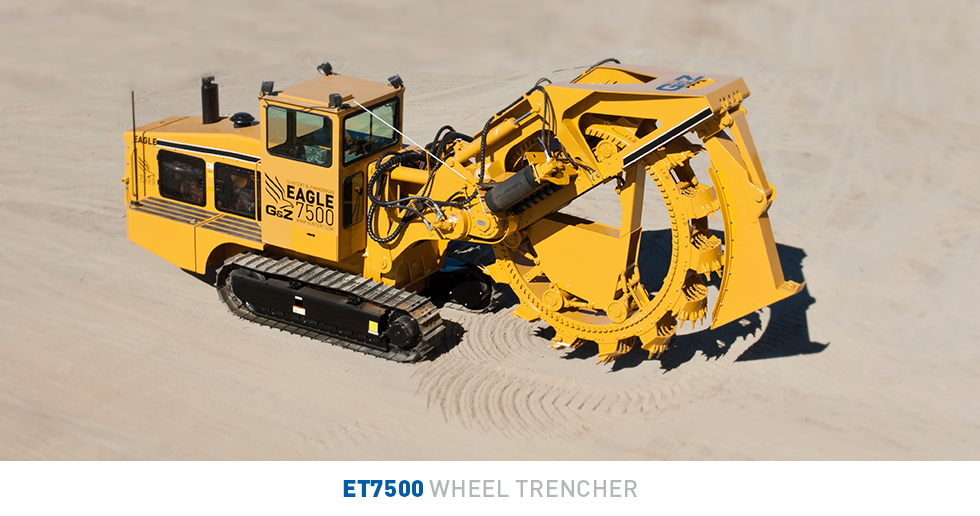

Eagle Bucket Wheel Trenchers

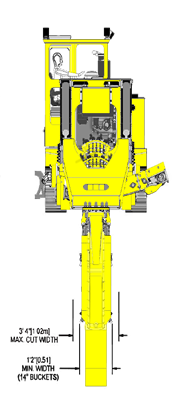

Eagle 7500 Rear View

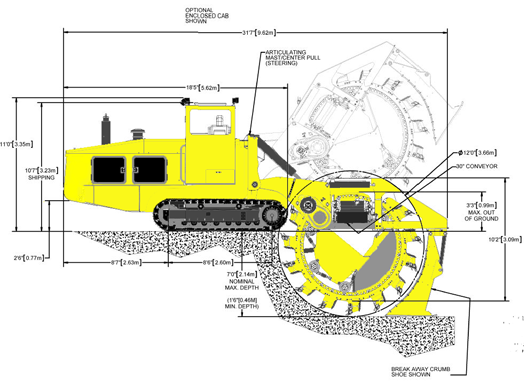

Eagle 7500 Side View


Bucket Wheel Trencher Information

Trencher Brochure
More Info Text


Standard Features
  • Engine: US EPA Tier 3/European Stage IIIA direct electronic fuel injection, turbocharged and aftercooled, 6-cylinder Diesel Engine, approximately 275 HP (205 kW) @ 2100 RPM
  • Conveyor: 30” (762 mm) wide x 8’-10” (2692 mm) long c to c with belt skirting rated @ 1000 fpm (305 mpm).
  • Digging Drive: - Two Hydraulic Motor Driven Gear Boxes with Integral Flywheel mounted direct to No. 1 Head Shaft
  • Undercarriage: G&Z D-4 size Crawlers / 20 in. (508 mm) wide triple grousers, SALT Chain with Split Master Link, Rock Guards. Undercarriage mounted directly to tractor body.
  • Bucket wheel assembly is connected to the main body of the trencher via pivot arms and the center pull, articulated mast.
  • Speed: Working speed approx. 0 - 30 fpm (0 – 9 mpm) and Travel speed approx. 0 - 200 fpm (0 - 61 mpm).
  • Hydraulic Conveyor Shift Mechanism
  • Fixed Crumb Shoe
  • Roll Over Protection System (ROPS)
  • 1 in. (25 mm) Rims and Buckets, foundation style
  • Weight: Estimated 50,000 lbs (22,679 kg)


Optional Features
  • Conical carbide teeth with holders
  • Roll-up Crumb Shoe, hydraulically powered
  • Automatic Steering and Grade Control System
  • Automatic Cross-Level System
  • Conveyor Extensions - 2’ (610 mm) or 4’ (1220 mm)
  • Additional Buckets and Bucket Backs for different trench widths up to maximum 40 in. (1,016 mm)
  • Air Conditioned and Heated, Enclosed ROPS Cab
