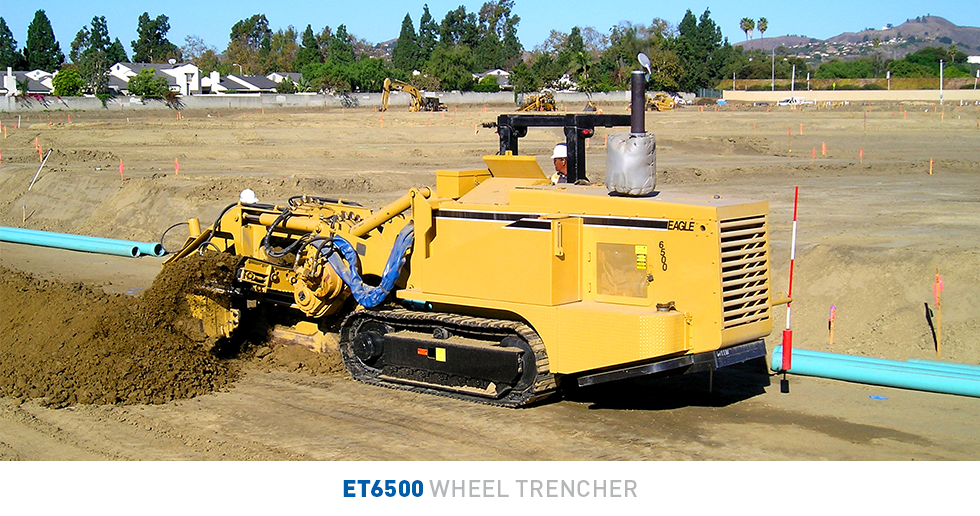

Eagle Bucket Wheel Trenchers

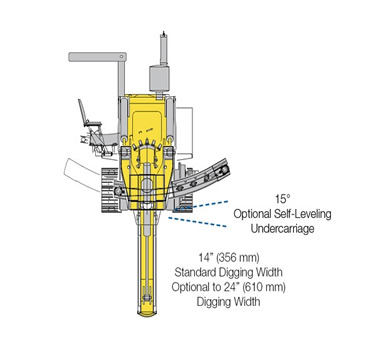

Eagle 6500 Rear View

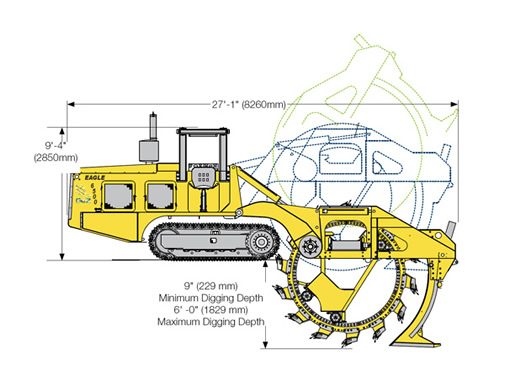

Eagle 6500 Side View


Bucket Wheel Trencher Information

Trencher Brochure
More Info Text


Standard Features
  • Engine: US EPA Tier 3/European Stage IIIA direct electronic fuel injection, turbocharged and aftercooled, 6-cylinder Diesel Engine, approximately 175 HP (130 kW) @ 2100 RPM, Continuous Rating.
  • Conveyor: Reversible Hydraulic Drive for either right or left discharge, 24 in. (610 mm) wide x approximately 7 ft.(2134mm) long, center to center, rated @ 0-1000 fpm (0-305 mpm)
  • Digging Drive: Heavy Duty, Hydraulic Motor Driven Wheel Drive
  • Gear Reducer with Integral Flywheel mounted directly to the Head Shaft
  • Undercarriage: G&Z D-4 size Crawlers, SALT Chain with
  • Split Master Link. High Reduction Planetary gear boxes.
  • Undercarriage mounted directly to the tractor body.
  • Speed Range: Working Speed 0 - 30 fpm (0 - 9.14 mpm), Travel Speed 0 - 200 fpm (0 - 61 mpm)
  • Hydraulic Conveyor Shift Mechanism
  • Hydraulic Conveyor Mechanism Shift
  • Hydraulic Roll Up Crumb Shoe
  • Roll Over Protection System (ROPS)
  • 1 in. (25.4 mm) Rims & Buckets, 24 in. (610 mm) Cut
  • Weight: Approximately 34,000 lbs (15,385 kg)


Optional Features
  • Self Level Control/Self Leveling Undercarriage
  • Round conical Carbide Teeth
  • Enclosed Operator Cab - Heated and Air Conditioned
  • Fixed Crumb Shoe
  • Additional Buckets for different trench widths up to maximum 30 in. (762 mm)
  • Narrow Bucket Wheel Kit to maintain full depth 18 in. (457 mm) trench width
