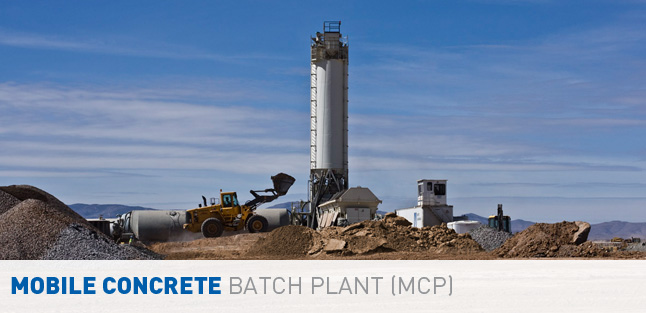

Concrete Batch Plants

The G&Z MCP Series plant out produces and outperforms single drum and most dual drum mixing plants available in the world today. The G&Z MCP13 plant with dual cement batch hoppers and wide aggregate weigh belts can theoretically produce up to 50 batches of 12cyd (9.23 m3) (vibrated and compacted concrete) in an hour when a 30 second mixing time is used.

  • Aggregate storage bins are loader accessible from the ground level with ramps. The bins have sufficient storage capacity to sustain high production rates. The weighing belts rapidly deliver aggregates to the mixer at extremely high accuracies.
  • G&Z's TSM Series twin shaft mixers are capable of delivering uniformily mixed, low slump concrete in 30 seconds.
  • The cement silo gravity feeds into the batch hopper(s) for rapid weigh-up. Dual batch hoppers insure rapid and accurate weighing and discharge of cement and fly ash (or other cement substitute) into the mizer without cumulative weighing.
  • No concrete foundations are required on the plant.
  • The concrete plant can be arranged to be totally self-erecting where no crane is required even for the silo.

This high production plant can be arranged with a footprint as small as 63' x 100' (19.2m x 36.3m).
