Highway and Airport Slipform Pavers and Support Equipment

Guntert & Zimmerman Slipform Pavers are the most trusted machines in the business. In 1956, G&Z pioneered and introduced the first concrete highway and airport slipform pavers mounted on crawler tracks with automatic line and grade control. Today, G&Z offers a wide range of concrete slipform paver models along with other support equipment, such as mechanical Dowel Bar Inserters, Placer Spreaders and Texture Cure Machines to suit your present and anticipated future needs.

These equipment designs are based on G&Z's more than half a century of experience. G&Z paving equipment is built to last under the rigors of job site use, transport, and configuration changes. Unique productivity features are incorporated in their design to reduce the time required to transport, maneuver, and change paving widths without sacrificing the performance advantage you have come to expect from a G&Z.



Slipform Paver Information

HWY AIR BrochureEquipment Brochure
HWY AIR QuoteRequest A Quote
 Concrete Slipform Pavers

model paving range* max. paving thickness** engine power*** weight****
S1500 16.5 - 52.5 ft. (5 - 16 m) 18 in. (457 mm) 350 HP (261 kW) 109,500 lbs. (49,548 kg)
S850 12 - 42.5 ft. (3.65 - 13 m) 18 in. (457 mm) 275 HP (205 kW) 90,200 lbs. (40,814 kg)
S600 8 - 31 ft. (2.5 - 9.5 m) 18 in. (457 mm) 200 HP (149 kW) 60,000 lbs. (27,149 kg)
S400 6.5 - 24.5 ft. (2 - 7.5 m) 18 in. (457 mm) 170 HP (125 kW) 45,000 lbs. (20,412 kg)


Concrete Placer Spreaders

model spreading range* belt width engine power weight****
MP550 N/A 36 in. (914 mm) 260 HP (193 kW) 45,000 Lbs. (20,412 kg)
PS1200 Nom. 18 - 41 ft. (5 - 12.5 m) 64 in. (1.62 m) 275 HP (205 kW) 92,500 Lbs. (41,957 kg)


Concrete Texture Cure Machines

model working range engine power weight****
TC1500 12 - 56 ft. (3.65 - 17.06 m) 76 hp (56 kW) 23,000 Lbs (10432 kg)
TC800 12 - 32 ft. (3.6 - 9.7 m) 76 hp (56 kW) 15,000 Lbs (6,803.7 kg)


Concrete Slipform Paving Equipment Options

product applicable equipment description
EGON All Equipment Equipment Guidance & Operation Network
Compact Dowel Bar Inserter (CDBI) S1500, S850, S600, S400 Automatic Dowel Bar Inserter
Stringless Paving Solutions All Equipment Stringless Placing, Paving, and Tining

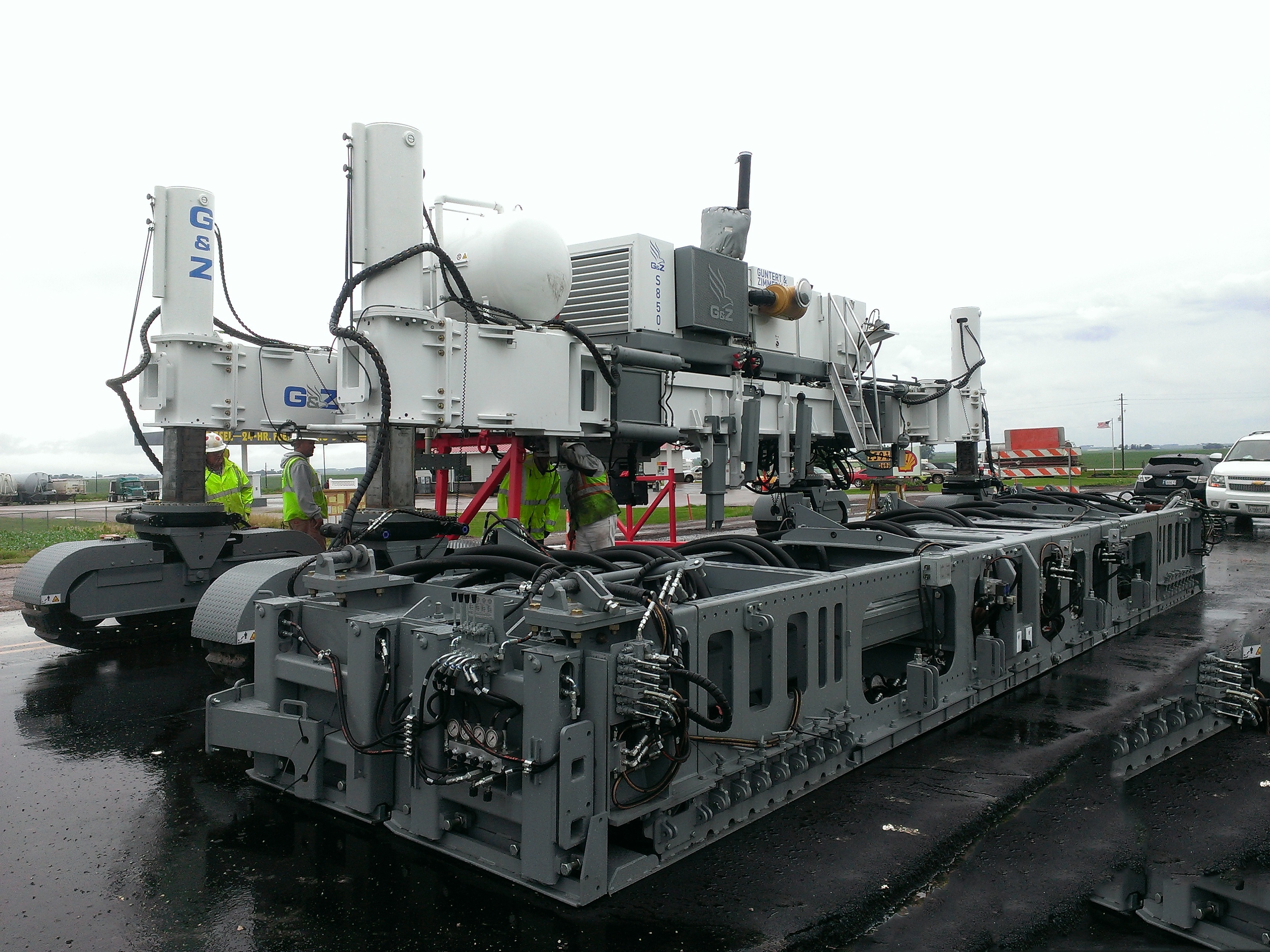

TeleEnd S1500, S850, S600, S400 Telescopic Paving Kit End Sections
Walk Box S1500, S850, S600, S400 Ground Level Remote Control

Belly Pack

 S1500, S850, S600, S400 Wireless Remote Control Operating Console

* 'Paving / Placing Range' reflects standard machine. Custom paving widths both narrower and wider can be achieved.
** 'Max. Paving Thickness' reflects standard machine. Custom paving thicknesses can be achieved.
*** 'Engine Power' reflects standard machine. Larger engine horse powers are available dpending upon the hydraulic needs.
**** 'Weight' reflects standard machine. Machine weight will vary based upon paving width and options.
***** 'All machine specifications are approximate.
